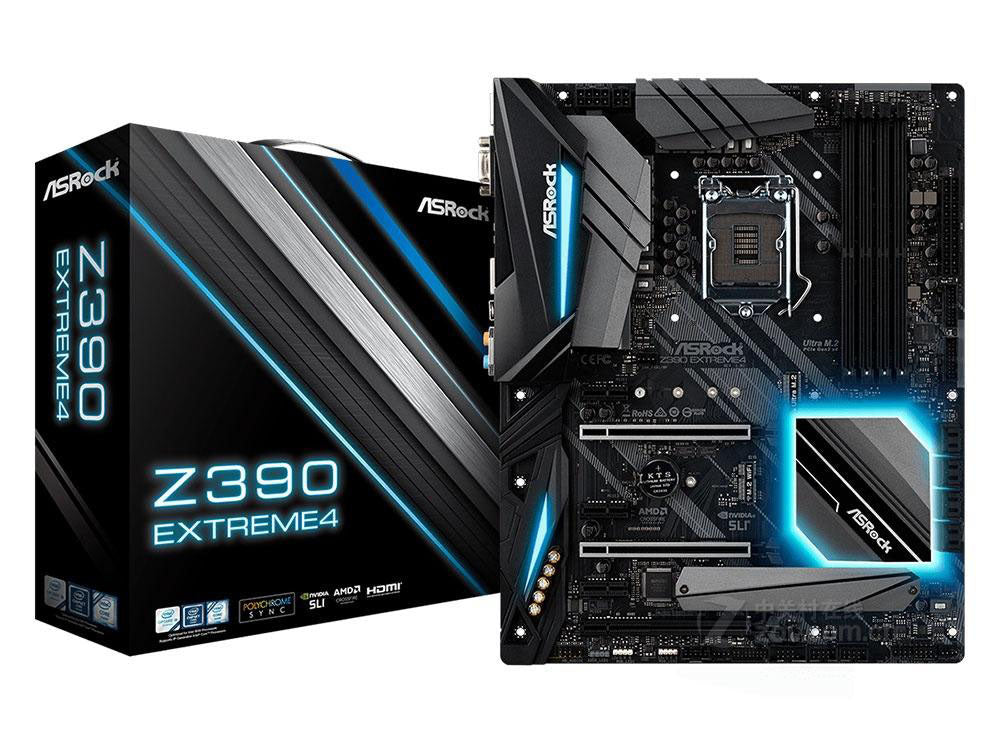

This motherboard is 100% new and maybe without CMOS battery for air transport.
Motherboard chip
Integrated chip sound card / network card
Main chipset Intel Z390
Chipset description: Intel Z390 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC1220 7.1-channel chip
Network card chip onboard Intel I219V Gigabit network card
Processor specifications
CPU type 9th / 8th generation Core i9 / i7 / i5 / i3 / Pentium / Celeron
CPU socket LGA 1151
Memory specifications
Memory type 4 DDR4 DIMM
Maximum memory capacity: 64GB
Memory descriptionSupport dual channel DDR4 4300+ (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3200 (OC) / 2933 (OC ) / 2800 (OC) / 2666/2400 / 2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3 PCI-E X16 graphics slot, 3 PCI-E X1 slot
Storage interface 2 M.2 interface, 8 SATA III interface
I / O interface
USB interface 2 USB2.0 interface, 6 USB 3.1 Gen1 interface (2 built-in + 4 backplane), 1 USB 3.1 Gen2 Type-A interface, 1 USB 3.1 Gen2 Type-C interface
Video interface 1 Display Port interface, 1 HDMI interface
Power interface One 8-pin, one 4-pin, one 24-pin power connector
Other interfaces 1 RJ45 network interface, 1 PS / 2 keyboard and mouse universal interface
Plate type
Motherboard form factor ATX form factor
Dimensions 30.5 24.4cm
Software management
BIOS performance 2x Multi-language 128Mb AMI UEFI Legal with graphic interface
Supports secure backup UEFI technology
ACPI 6.0 compatible wake event
Supports SMBIOS 2.7
CPU Core / Cache, GT, DRAM, PCH 1.0V, VCCIO, CPU PLL 2, VCCSA, VCCPLL, CPU Cold Bug Killer, CPU PLL 1, CLK VDD, DMI, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL , Memory controller PLL voltage multiple adjustments
Other parameters
Power supply mode
RAID function Support RAID 0, 1, 5, 10
Hardware monitoring Temperature detection: CPU, CPU / pump, chassis / pump fan
Fan tachometer: CPU, CPU / pump, chassis / pump fan
Quiet fan (can automatically adjust chassis fan speed according to processor temperature): CPU, CPU / pump, chassis / pump fan
Fan multi-speed control: CPU, CPU / pump, chassis / pump fan
Real-time voltage monitoring: + 12V, + 5V, + 3.3V, CPU core, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST, VCCIO
Other parameters Operating system: Support Microsoft Windows10 64-bit
Listing date October 2018
Motherboard accessories
Packing list Motherboard x1
Quick Installation Guide x1
Driver CD x1
I / O backplane x1
SATA data cable x4
M.2 screw x3
About Product
We promise that all products are tested before shipping. If the products notworking when you received it ,there could be many reason.please tell us in timeby email with your tested pictures or message online,even video Before installing,you must make sure others parts from your computer 100% work.
About Payment
Before placing your order,please confirm details with us if you have request on items.Please make payment within 3 days of order if possible.
About Shipment
1.Preparing Time:we need 1-3 working days to prepare your order according to our numerous orders every day.2.Please double check your address when you write in aliexpress,if you want change before we ship them out, Please contact us. About Service 1.We care about our valued customers,and will always try to help you,hope to establish long business with you.2.Please contact us by before leaving any negative feedback or opening and dispute on the site.Please give us the opportunity to resolve any problem.
Contact US
Please contact us if you have any questions.We will reply you within 24 hours !
About Feedback
1.If you are satisfied with our products and services,please leave your positive feedback and 5 stars.2.If you don't satisfied our products,pls contact us before you leave negative feedback.we guarantee we will 100% solve any problem for you and make you satisfied.
