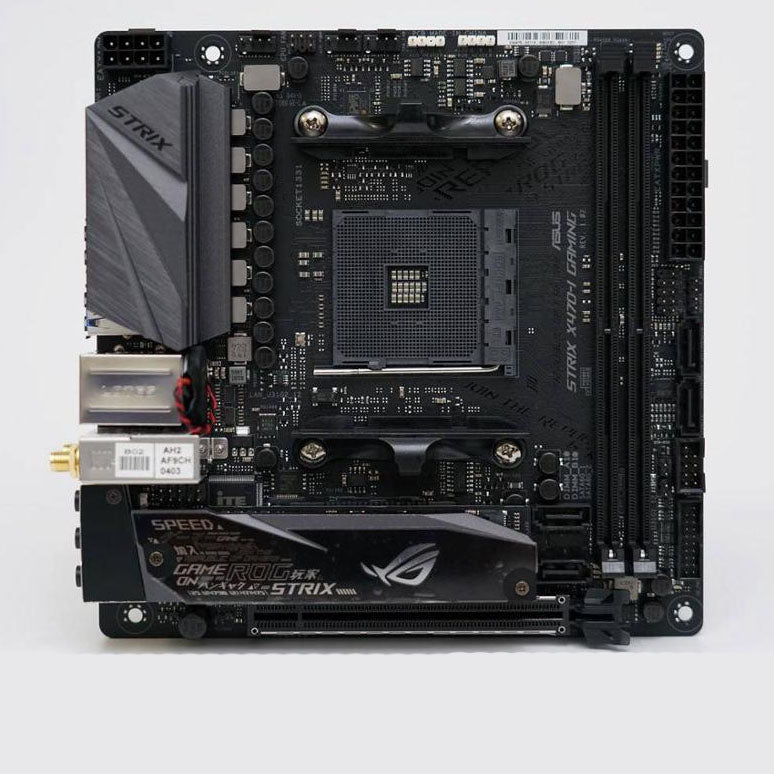

Used motherboard for ASUS ROG STRIX X470-I GAMING Socket AM4 DDR4 64G USB3.1 HDMI M.2 X470 Desktop motherboard
This motherboard is used , about 90% new , 100% tested it is working well before shipping, and maybe without CMOS battery for air transport.
Packing: motherboard and I/O shield back plate and sata cable.
Motherboard chip
Integrated chip video card / sound card / network card
Main chipset AMD X470
Chipset description using AMD X470 chipset
Display chip Integrated AMD Radeon Vega Graphics / 7th generation A-series display chip
Audio chip integrated ROG SupremeFX S1220 8-channel audio chip
Network card chip Onboard Intel I211-AT Gigabit network card
Processor specifications
CPU type AMD Ryzen / 7th generation A series / Athlon II / Athlon
CPU socket Socket AM4
Memory specifications
Memory type 2 DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual channel DDR4 3600 (overclocked) / 3466 (overclocked) / 3400 (overclocked) / 3200 (overclocked) / 3000 (overclocked) / 2933 (overclocked) / 2800 (overclocked) / 2666/2400 / 2133MHz
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1 PCI-E X16 graphics slot
Storage interface 2 M.2 interface, 4 SATA III interface
I / O interface
USB interface 2 USB3.1 Gen1 Type-A interface (2 backplanes), 6 USB3.1 Gen1 interface (2 built-in +4 built-in), 2 USB2.0 interface (2 built-in)
Video interface 1 HDMI interface
Power connector: one 8-pin, one 24-pin power connector
Other interfaces 1 RJ45 network interface, 3 LED-light effect audio interface, 1 RGB light bar interface, 1 chassis fan interface, 1 front panel audio interface, 1 temperature sensor interface, 1 AIO_water pump interface, 1 system panel interface, 1 speaker interface
Plate type
Board type Mini-ITX board type
Dimensions 17.0 17.0cm
Software management
BIOS performance 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.0, ACPI 6.0, multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, favorites, history, F12 screenshots, user settings archive, ASUS DRAM SPD ( Serial Presence Detect) memory information, F6 Qfan Control, F4 AURA ON / OFF, F9 search
Other parameters
RAID function Support RAID 0, 1, 10
Wireless function Wireless: Support 802.11 a / b / g / n / acWiFi standard, support 2.4 / 5GHz wireless dual frequency
Bluetooth support Bluetooth 4.2
Other features support HIFI
Listing Date April 2018
About Product
We promise that all products are tested before shipping. If the products notworking when you received it ,there could be many reason.please tell us in timeby email with your tested pictures or message online,even video Before installing,you must make sure others parts from your computer 100% work.
About Payment
Before placing your order,please confirm details with us if you have request on items.Please make payment within 3 days of order if possible.
About Shipment
1.Preparing Time:we need 1-3 working days to prepare your order according to our numerous orders every day.2.Please double check your address when you write in aliexpress,if you want change before we ship them out, Please contact us. About Service 1.We care about our valued customers,and will always try to help you,hope to establish long business with you.2.Please contact us by before leaving any negative feedback or opening and dispute on the site.Please give us the opportunity to resolve any problem.
Contact US
Please contact us if you have any questions.We will reply you within 24 hours !
About Feedback
1.If you are satisfied with our products and services,please leave your positive feedback and 5 stars.2.If you don't satisfied our products,pls contact us before you leave negative feedback.we guarantee we will 100% solve any problem for you and make you satisfied.
